Spline Broaches

• Brooches Type
• Internal Broaching

• Coating
• Not Applicable / Tool Dependent

• Coating Type
• None/As per tool specification

• Cutter Type
• Single Point

• Cutting Accuracy
• 0.01 mm

• Cutting Capacity
• Varies with broach and material

• Cutting Force
• 15-30 Tons (Approx)

• Cutting Speed
• Variable (Up to 8 m/min)

• Diameter
• Up to 250 mm (Varies)

• Features
• High rigidity, Smooth operation, Easy set up

• Hardness
• Up to 60 HRC (Depends on material processed)

• Length
• Up to 1800 mm

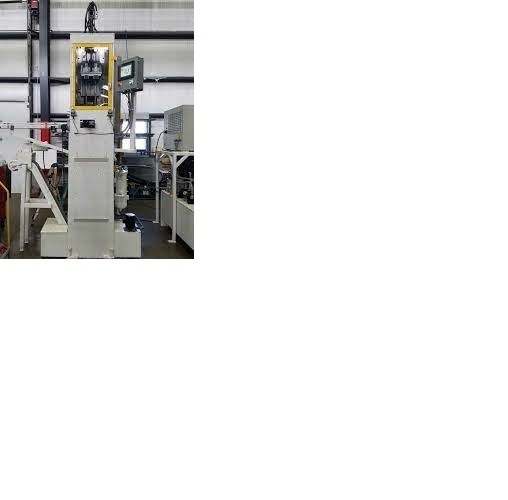

• Machine Type
• Hydraulic Broaching Machine

• Material
• Others

• Operate Method
• Hydraulic

• Operation Type
• Other, Automatic and Semi-Automatic

• Processing Type
• Metal Cutting

• Shape
• Vertical

• Tool Type
• Industrial Broaching Tool

• Brooches Type
• External and Internal Spline Broaches

• Coating
• Optional TiN, TiAlN

• Coating Type
• Uncoated or can be TiN/TiAlN coated

• Color
• Silver

• Cutter Type
• Spline Cutter

• Cutting Accuracy
• 0.01 mm

• Cutting Capacity
• Depends on diameter and length; typically high precision slots or splines

• Cutting Force
• High (suitable for tough materials)

• Cutting Speed
• 15-30 m/min (material dependent)

• Diameter
• Custom sizes, typically 6 mm to 60 mm

• Drill Bits Types
• Spline Broaches

• Features
• High precision, Durable, Multiple regrinds possible, Custom profile available

• Hardness
• 58-64 HRC

• Length
• 200 mm to 1200 mm (customizable)

• Machine Type
• Broaching Machines

• Material
• Others

• Maximum Torque
• Application dependent, high torque resistant

• Operate Method
• Automatic feed or manual operation depending on setup

• Operation Type
• Other, Manual or CNC

• Processing Type
• Broaching

• Product Type
• Spline Broaches

• Shape
• Cylindrical with spline cutting teeth

• Size
• Standard

• Tool Type
• Spline Broaching Tool

• Usage
• Industrial
